Every meter reaches the gateway, through its neighbours if it has to. One line leaves the site.
Remote monitoringfor sites nobodyis standing on.
Instruments on plant hours from the office. Readings come back over RF mesh, cellular or fixed line, and survive an outage. Every figure arrives with the time it was taken.
Situations we specify against
Situations we specify against: a pump runs dry overnight; a generator does not change over; a tank drains between visits; a remote site cannot be reached.
More Data. More Value.
Illustration. Synthetic figures, not live data.
2020Established
5Published areas
49Parameters
1 minFastest cadence
FreeRemote survey, anywhere in Ghana
Topology
One backhaul,
not one per sensor.
Battery or solar powered instruments report to a gateway over RF mesh. Each one can reach the gateway through its neighbours, so a lost link re-routes instead of taking the reading with it. Where there is no line at all, the gateway holds the readings and forwards them when the link returns, with the times they were actually taken.
02A link drops
The traffic that used it appears on the neighbouring path instead. The reading is late, not lost.
03No line out
The gateway holds the readings and forwards them when the link returns, with the times they were actually taken.
One backhaul per site · mesh re-routes on link loss · readings held through an outage. Illustration, not the layout of any site.
What we monitor
Five published areas, 49 parameters.
Air, water and effluent, recorded continuously rather than when someone remembers to take a reading.
What we measure
11 parameters
- Sulfur dioxideSO₂·µg/m³Every minute
- Nitrogen oxidesNOₓ·µg/m³Every minute
- Carbon monoxideCO·mg/m³Every minute
- Particulate matterPM2.5 / PM10·µg/m³Every minute
- Reduced sulfur compoundsTRS·µg/m³Every 5 minutes
- Water flowQ·m³/hEvery minute
- AciditypH·pHEvery 5 minutes
- Effluent temperatureT·°CEvery 5 minutes
- Wind speed and directionu, θ·m/s, °Every minute
- Solar radiationG·W/m²Every 5 minutes
- PrecipitationR·mmEvery 5 minutes
What is fitted is decided at survey. This is the range we specify from, not a list of what every site gets.

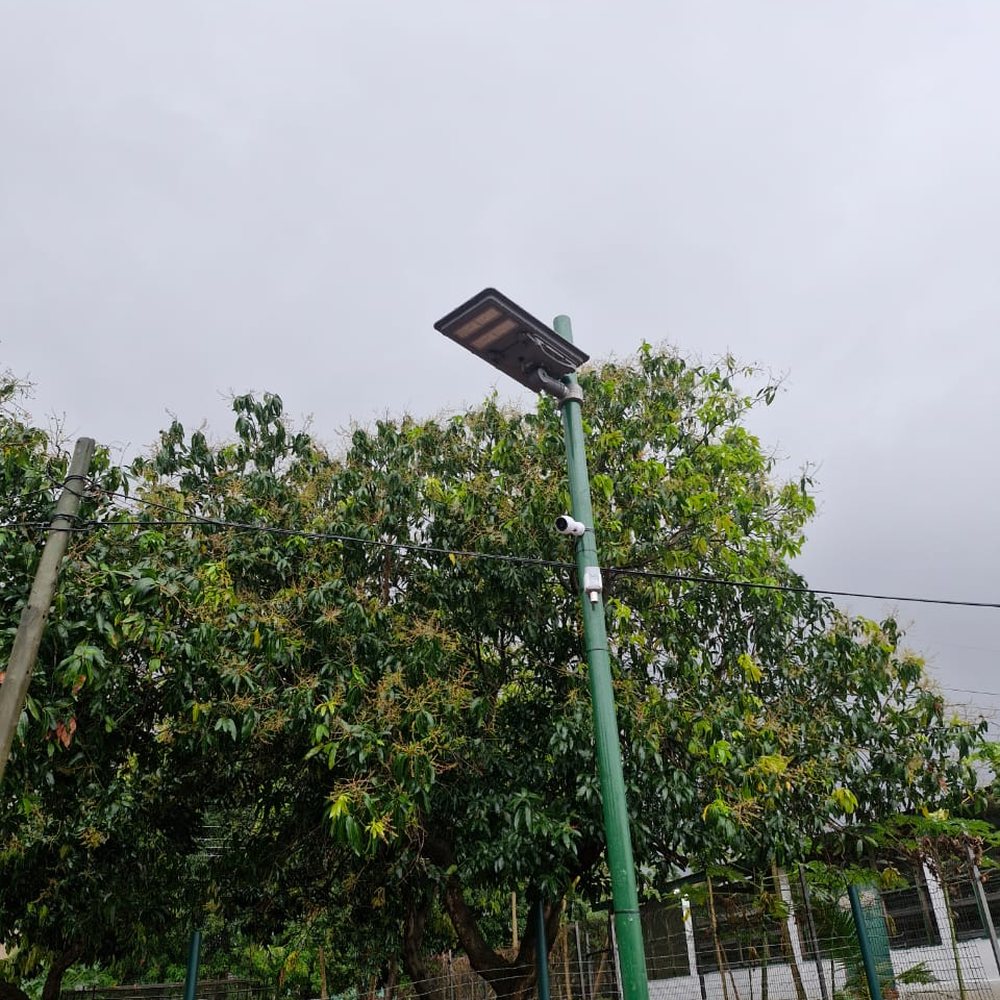

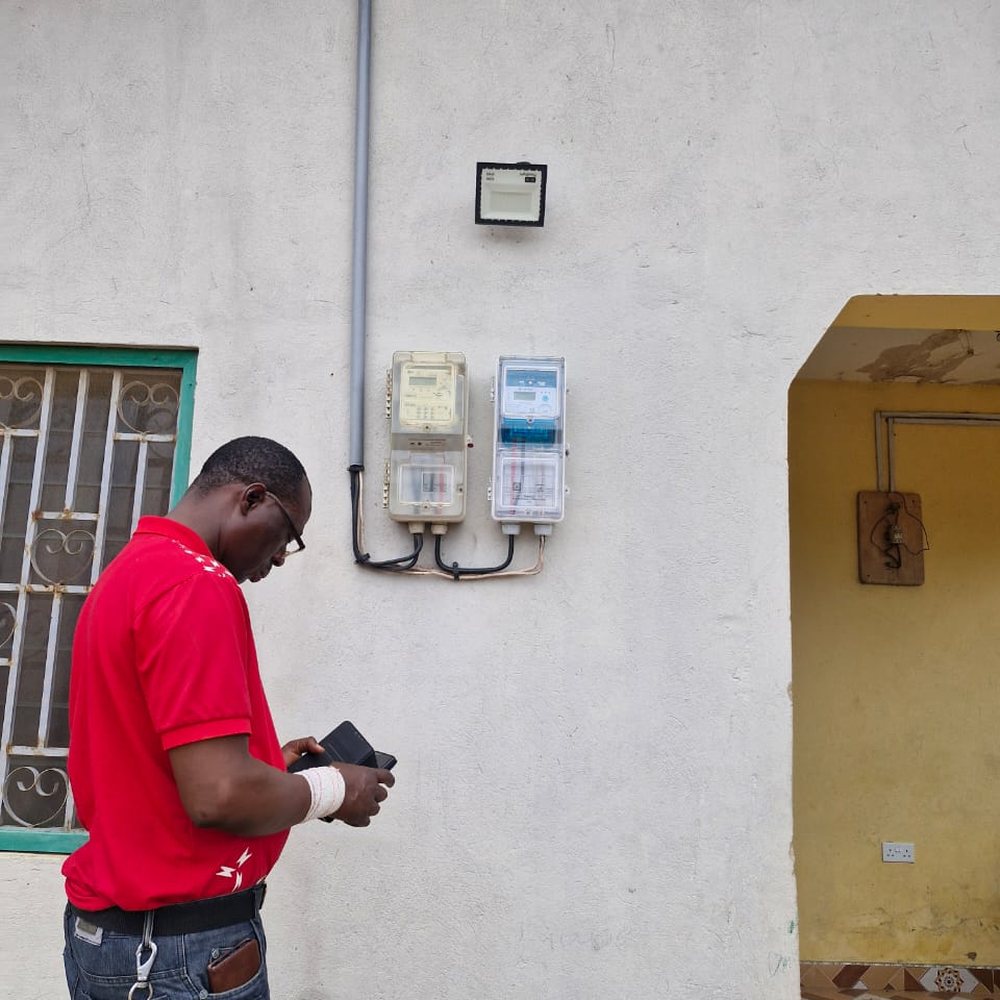

Generators, street lighting, distribution assets and metering points, reporting state and consumption from wherever they are installed.
What we measure
10 parameters · 9 on a schedule · 1 reported on an event
- VoltageU·VEvery minute
- CurrentI·AEvery minute
- Frequencyf·HzEvery minute
- Active powerP·kWEvery minute
- Reactive powerQ·kvarEvery minute
- Active energyE·kWhEvery 15 minutes
- Power factorcos φ·ratioEvery minute
- Run hoursh·hEvery 15 minutes
- Changeover stateon / offOn change
- Fuel level, where a sender existsL·%Every 5 minutes
What is fitted is decided at survey. This is the range we specify from, not a list of what every site gets.
Water, power and climate on land nobody is standing on: tank levels, pump state, gate and store status.
What we measure
9 parameters · 7 on a schedule · 2 reported on an event
- Soil moistureθv·%Every 15 minutes
- Air temperature and humidityT, RH·°C, %Every 5 minutes

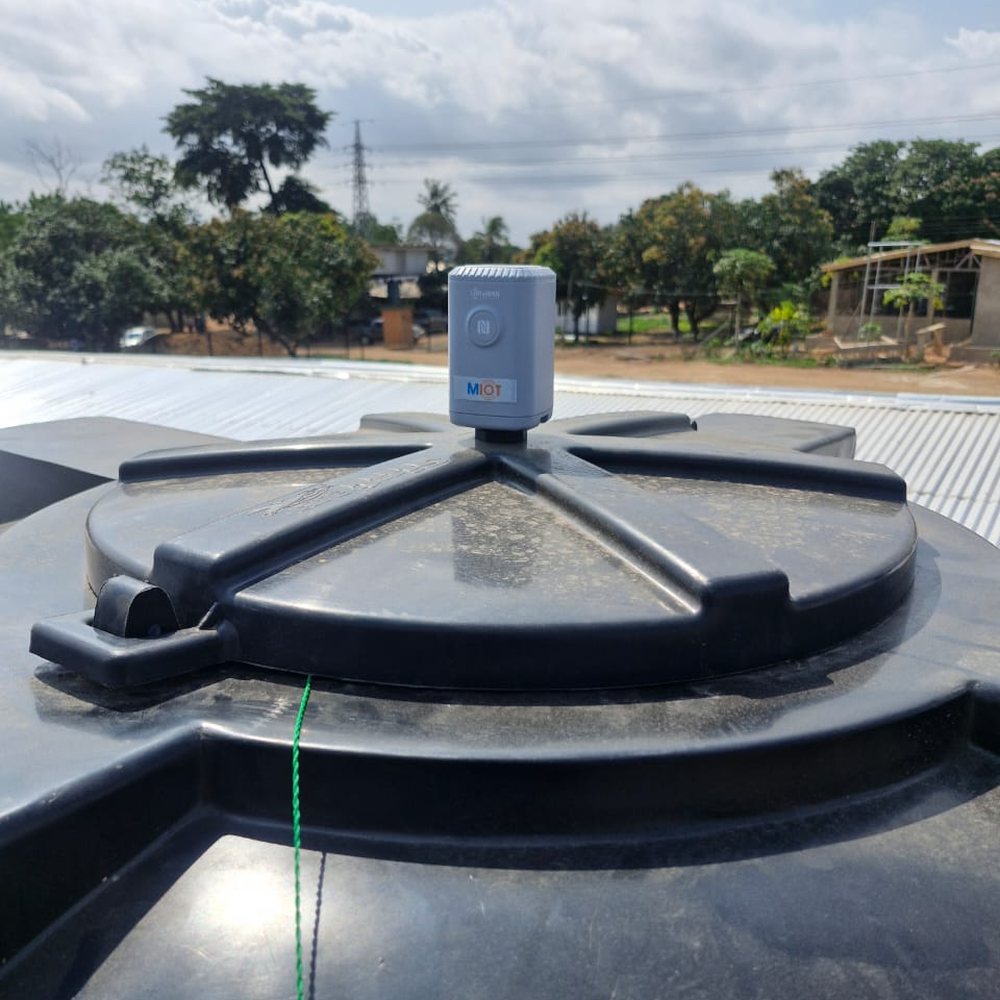

- Tank levelL·mEvery 5 minutes
- Irrigation flowQ·m³/hEvery minute

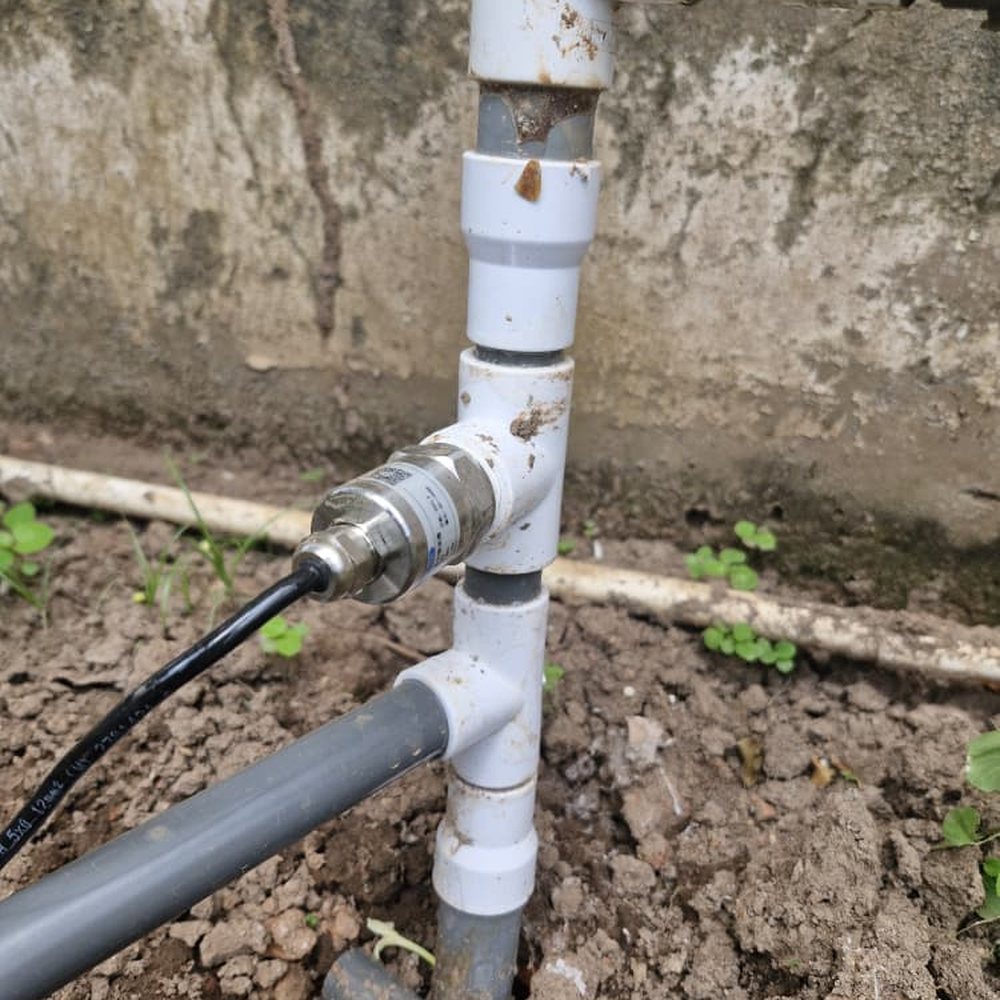

- Line pressurep·barEvery minute
- Pump run stateon / offOn change
- Cold room temperatureT·°CEvery 5 minutes
- Generator run hoursh·hEvery 15 minutes
- Door and gate positionopen / shutOn change
What is fitted is decided at survey. This is the range we specify from, not a list of what every site gets.
Wells, mains and reservoirs reporting between visits, so consumption is a continuous record rather than a monthly reading.
What we measure
9 parameters · 8 on a schedule · 1 reported on an event
- Water tableh·mEvery 15 minutes
- Aquifer levelh·mEvery 15 minutes
- FlowQ·m³/hEvery minute
- VolumeV·m³Every 15 minutes
- Pressurep·barEvery minute
- Pump run hoursh·hEvery 15 minutes
- Electrical parametersU, I·V, AEvery minute
- Phase asymmetry%Every minute
- Valve position% openOn change
What is fitted is decided at survey. This is the range we specify from, not a list of what every site gets.

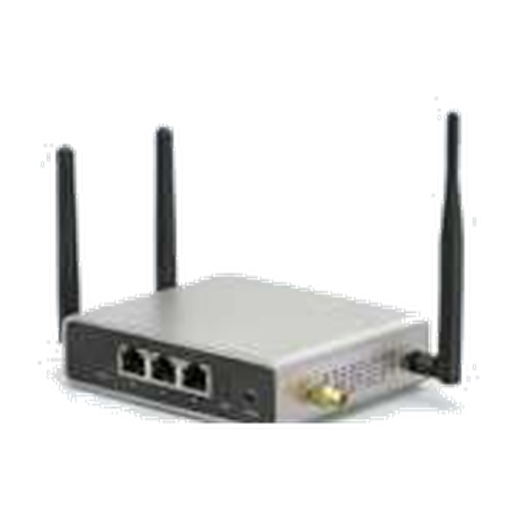

The box between the site and everything else. It polls instruments, buffers locally, and forwards when the link returns.
What we measure
10 parameters · 5 on a schedule · 5 reported on an event
- Energy metersAC / DC·pulse, ModbusEvery minute
- Dimmer and LDR%, luxEvery minute
- Fuel sensorsL·%Every 5 minutes
- Solar, battery bank, UPSU, I, SoC·V, A, %Every minute
- Fire and smoke detectorsstateOn change
- Flood detectionstateOn change
- Gas and water leak detectionstateOn change
- GPS and asset trackinglat, lonEvery minute
- Geofencingin / outOn change
- On/off device controlcommandOn demand
What is fitted is decided at survey. This is the range we specify from, not a list of what every site gets.
The chain
From an instrument to a decision.
Five links, and the value is in all five holding. A reading that is taken but not carried, or carried but not kept through an outage, is not a reading you can act on.
-
01
Data collection
Sensors and our hardware on your plant, measuring the parameters agreed at survey and timestamping every one on arrival.
-
02
Reporting
RF mesh, cellular or fixed line, chosen by what the site has rather than what is convenient to install. One backhaul, not one per sensor.
-
03
Buffering
When the link drops the gateway keeps recording. Readings are forwarded when it returns, with the times they were actually taken.
-
04
Monitoring
Flow, volume, pressure, level, run hours and electrical parameters, with the history behind every figure.
-
05
Alarms and control
Notification on the conditions you set. Where a site is built for it, outputs to switch a pump or move a valve.
Hardware
Specified and supported by us, not drop-shipped.

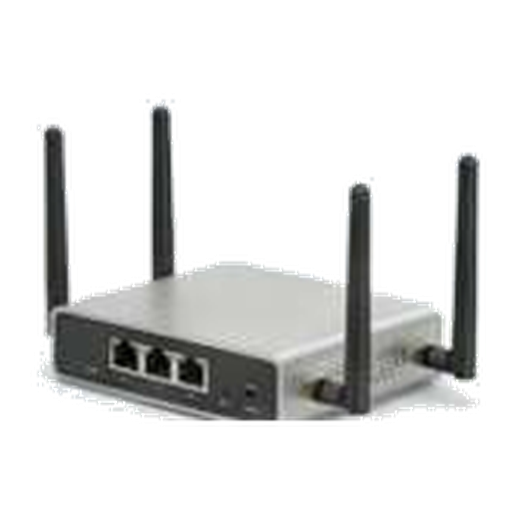

Gateways, repeaters and meter clusters, chosen against the enclosure, the power available and the temperature the box will actually see.
How it is chosen

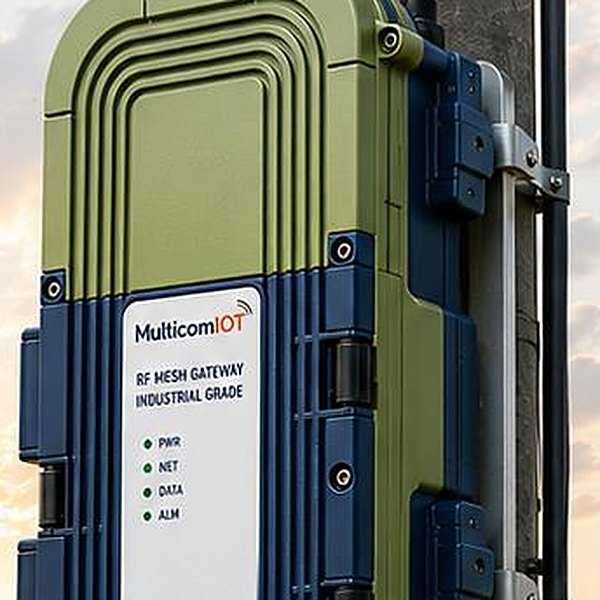

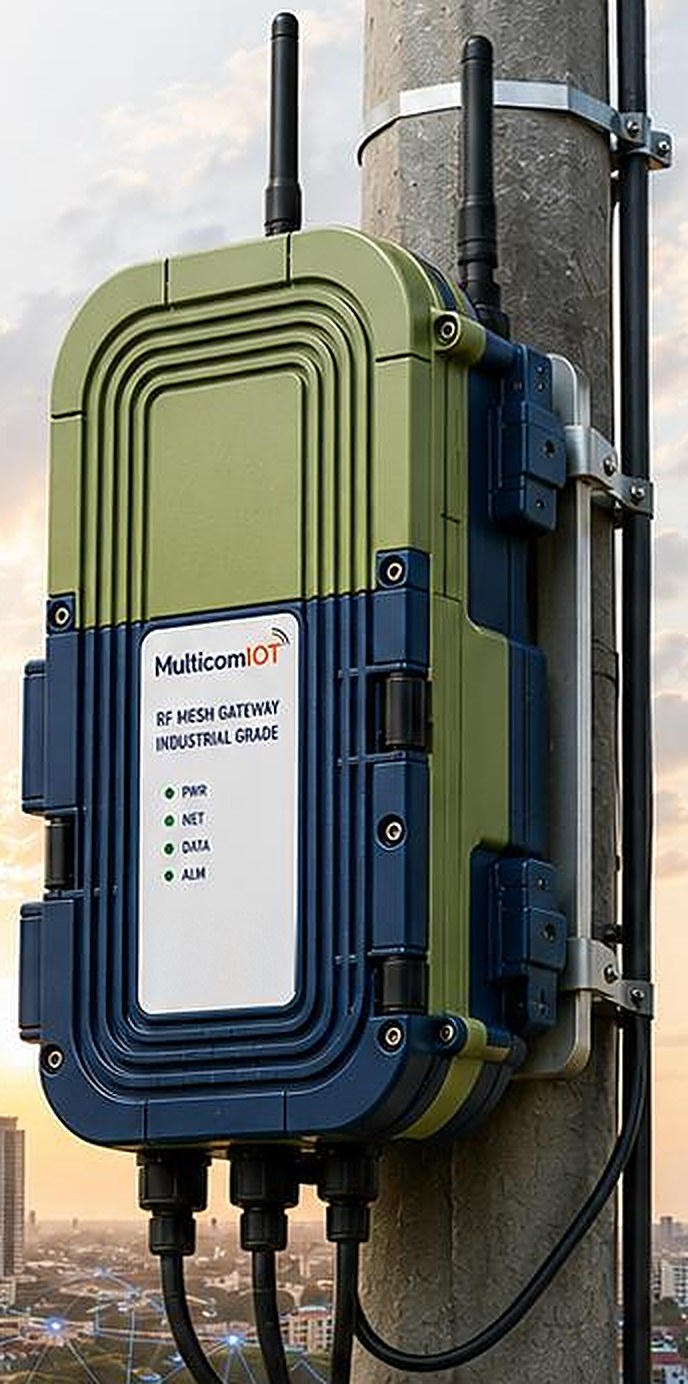

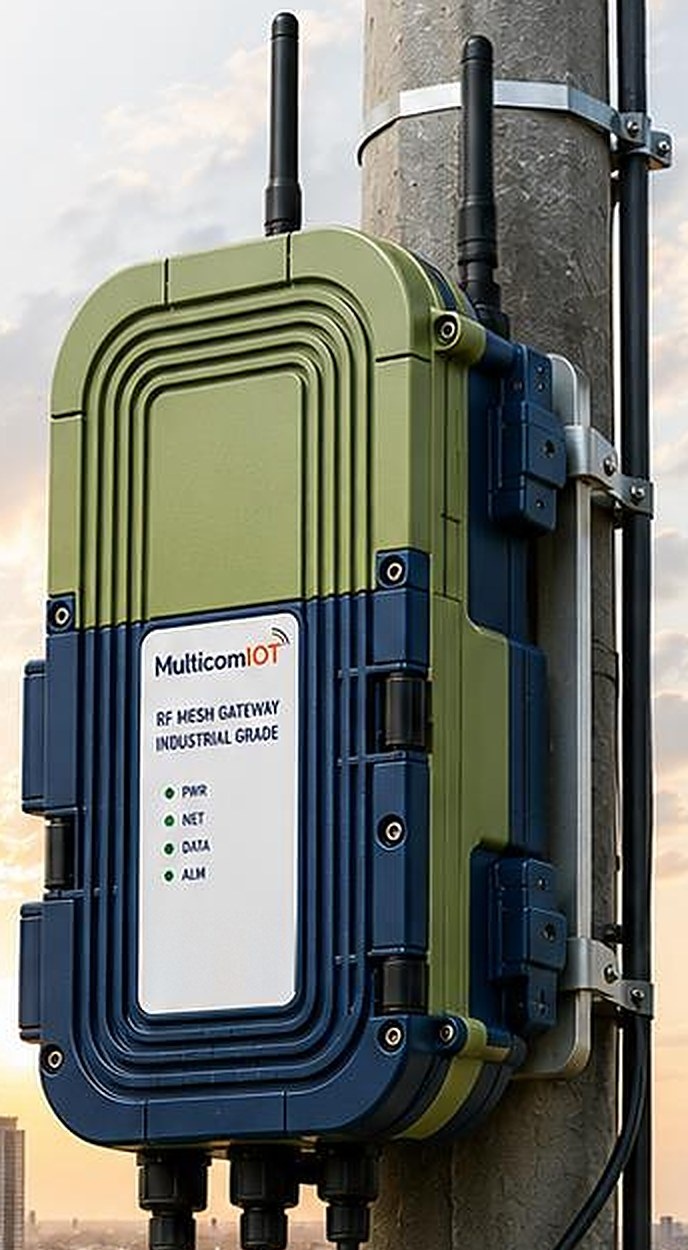

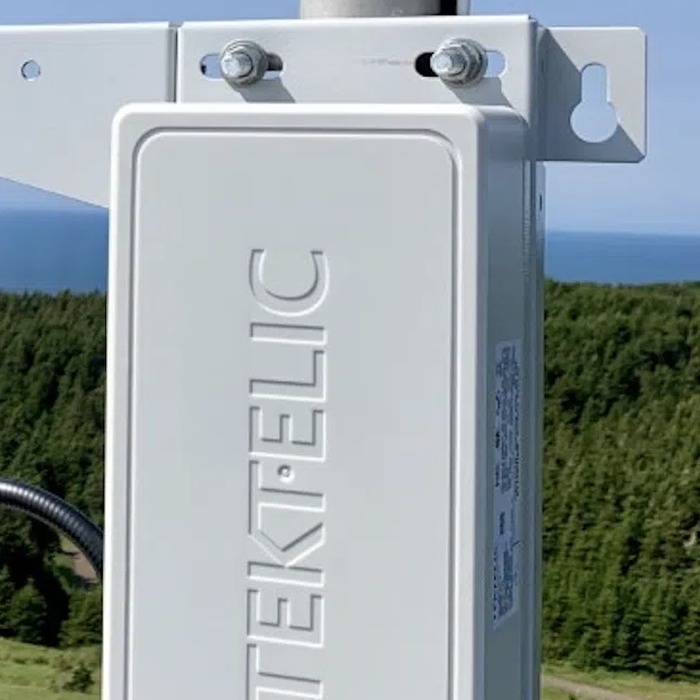

- Pole and mast — sealed, sun-rated, bracket sized to the pole that is actually there.

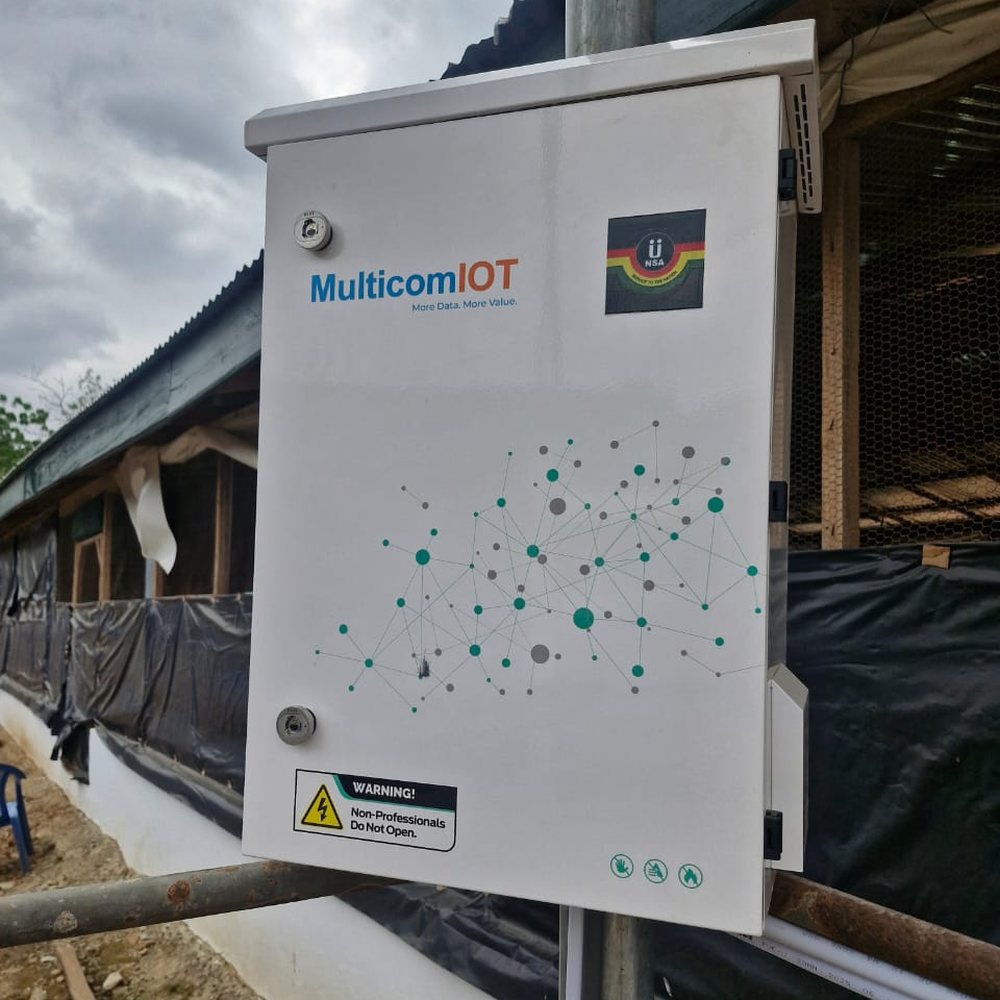

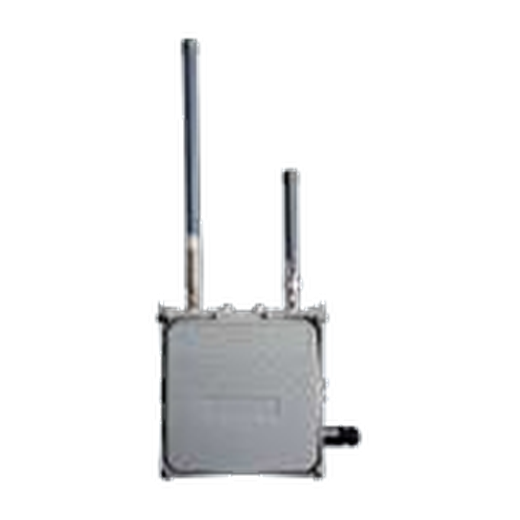

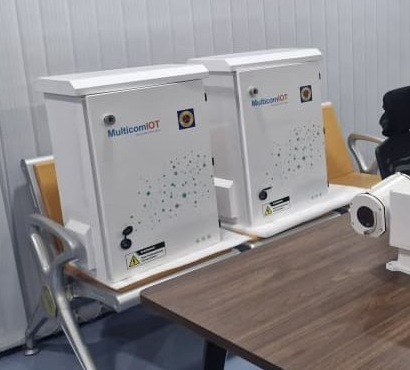

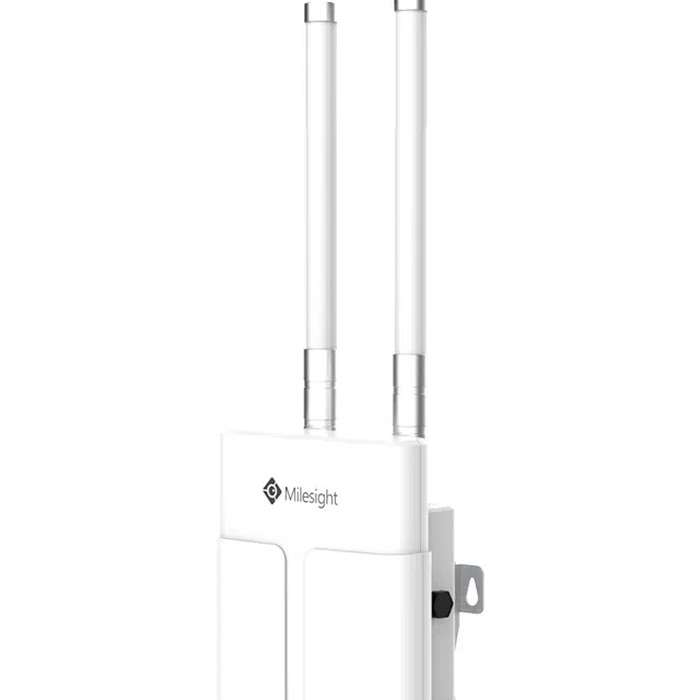

- Outdoor, wall or cabinet — external antennas where the enclosure would otherwise blind the radio.

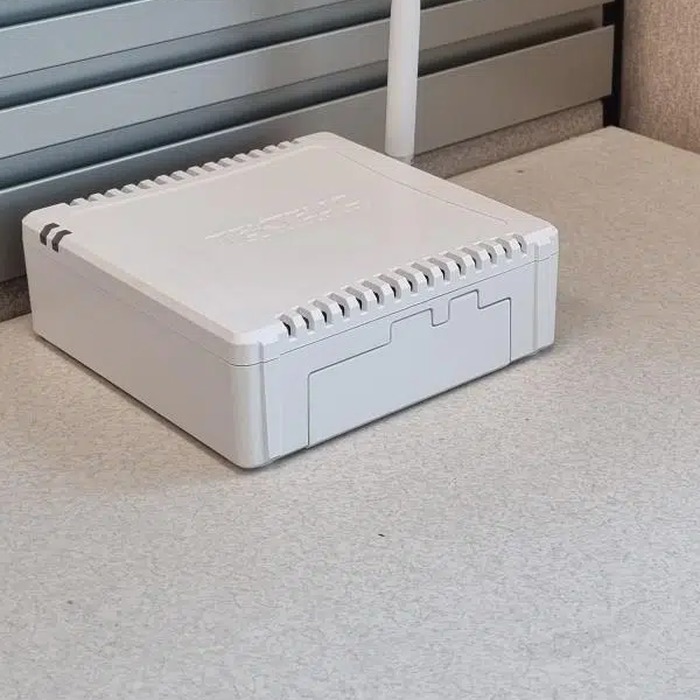

- Indoor — where there is mains and a roof, and the argument is coverage rather than weather.
The view
The history behind every figure.
A reading on its own is a number. A reading with the ones before it is a record you can act on: a step in consumption, a pump drawing more than it did last month, a link that has been dropping since Tuesday.
- Timestamped on arrival
- Buffered through an outage
- Alarms on your conditions
- Outputs where the site allows
Process
Four steps, in this order, every time.
The remote survey is free anywhere in Ghana. A physical survey carries a fee, covering transport and the team. Either produces a written scope, so what is quoted is what was seen.
01

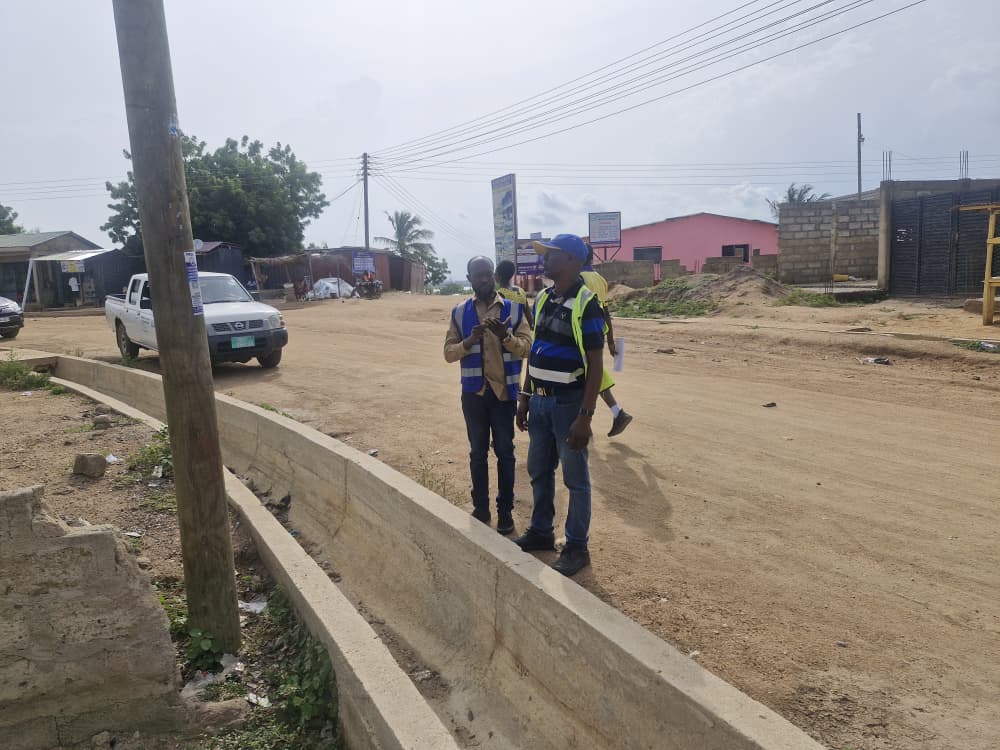

Survey
Free remotely, and produces a written scope
Coordinates taken, the zones walked with you online and plotted on the map. An engineer on site instead where the job needs one: what is already there, what power exists, what the radio path looks like, where a cabinet can go.
02
Specify
Against the site, not a catalogue
Instruments chosen against the measurement, the enclosure, the power available and the temperature the box will actually see.
03

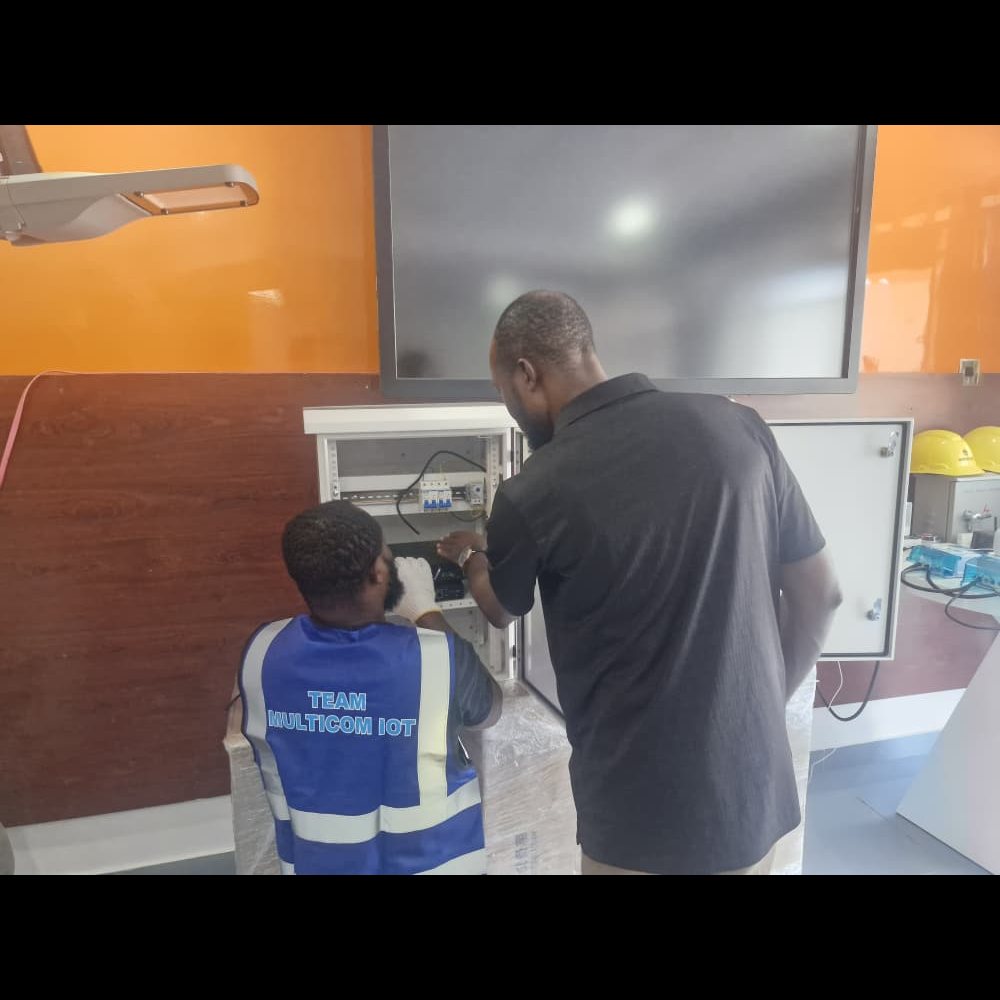

Commission
Proven on site
Installed, wired, addressed and proven where it will live. Nothing is signed off on the strength of a bench test.
04
Operate
Inside the contract
Calibration intervals, battery replacement and link checks are in the contract, not in a follow-up quotation.
MORE INFORMATION.
BETTER DECISIONS.
What you get
NO SURPRISES AFTER THE SURVEY.
- A written scope
- Instruments specified per site
- Readings timestamped on arrival
- Buffered through an outage
- Calibration intervals in the contract
- Support on 023 210 0100
Hardware is specified and supported by us, not drop-shipped.
Situations
Not case studies. Failures we specify against.
We do not publish client names, sites or sectors.
Level · run state
Agriculture · Water
A pump runs dry overnight
Nobody knows until someone is standing there in the morning. A level sensor and a run-state input turn that into a reading with a time on it.
- Level sensor
- Run-state input
Mains · changeover
Energy
A generator does not change over
The site is dark and the first anyone hears is a phone call. Changeover state is one digital input.
- Digital input
- Changeover state
Monthly · continuous
Water
A tank drains between visits
Consumption looks normal on a monthly reading and abnormal on a continuous one. The step is visible the day it happens.
- Continuous reading
- Step, same day
Buffer · forward
RTUs & Gateways
A remote site cannot be reached
Where there is no line, the gateway holds readings and forwards them when the link returns, with their original times intact.
- Gateway buffer
- Original times
